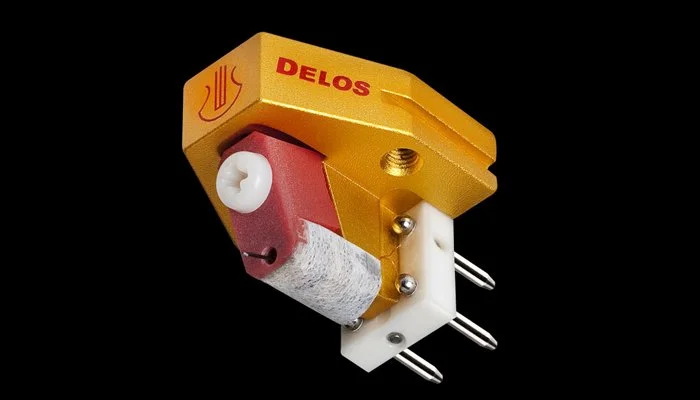

The Lyra Delos is a low-impedance moving coil cartridge designed by Jonathan Carr to deliver exceptional tracking, resolution and dynamic expression. Its New Angle technology aligns the magnetic circuit, signal coils and core correctly when the cartridge is operating at its specified tracking force, rather than only when the suspension is unloaded.
A nude Microridge line-contact stylus, solid boron cantilever and 6N high-purity copper coils contribute to its clarity, transient speed and precise retrieval of musical detail. The solid machined aluminium body uses non-parallel surfaces to reduce internal resonances, while its medium compliance and 7.3g weight make the Delos suitable for a broad range of medium and medium-high-mass tonearms.
Key features
Low-impedance moving coil design
Lyra New Angle technology
Nude Namiki Microridge line-contact stylus
Solid boron rod cantilever
6N high-purity copper coils
Anodised aluminium body with non-parallel surfaces
0.6mV output at 5cm/sec
7.3g cartridge weight
Recommended tracking force: 1.72g
Recommended for medium to medium-high-mass tonearms
