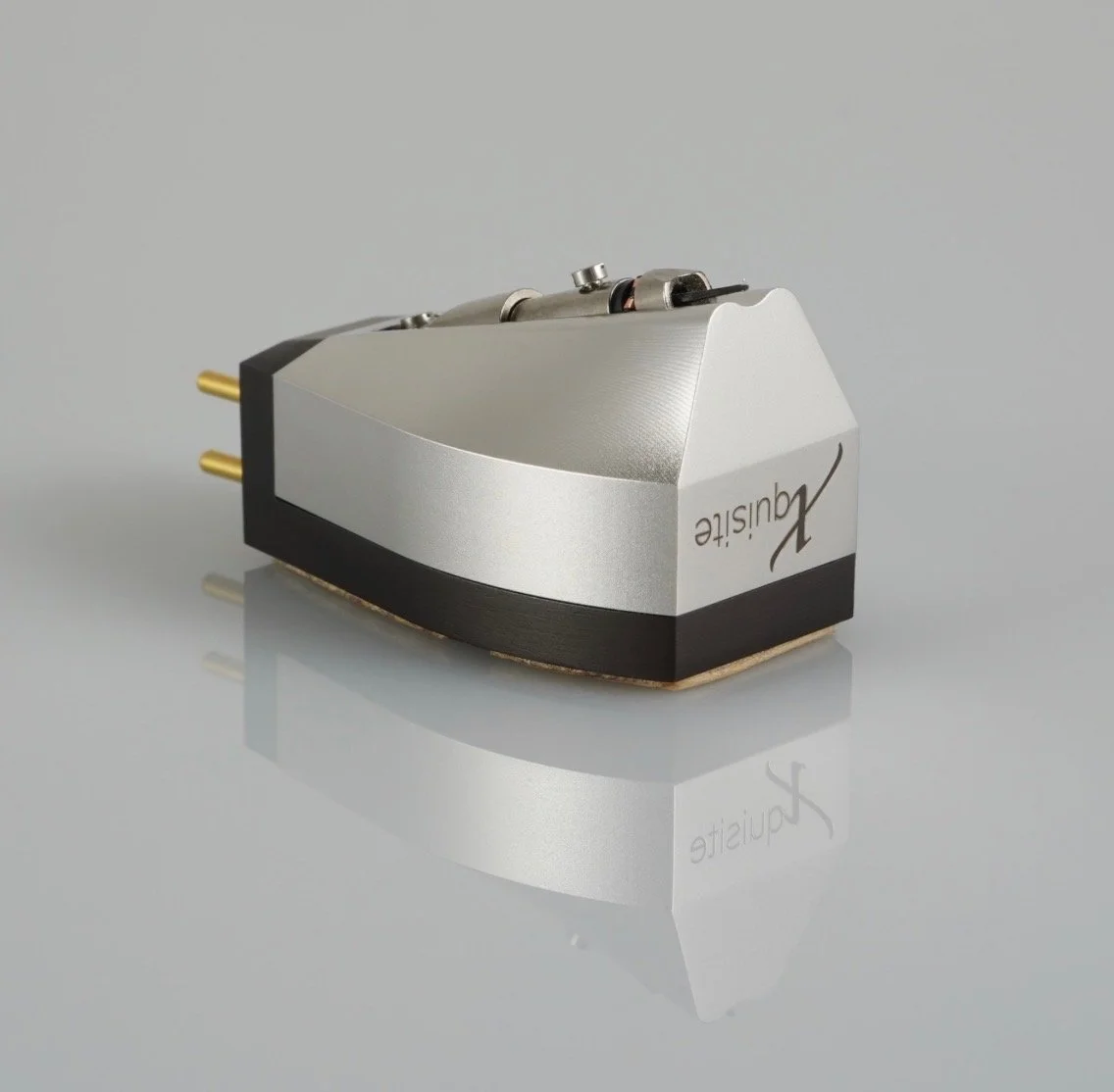

The X-quisite ST is a reference moving coil cartridge built around X-quisite’s patented monobloc ceramic transducer technology. Unlike conventional cartridges where the cantilever and coil former are separate components joined together, the ST uses a single continuous ceramic structure for both, eliminating a mechanical interface within the transducer and providing exceptional rigidity and precise transmission of stylus movement to the generator.
A Micro Ridge diamond stylus, 4N pure silver coils and Neodymium-Armco magnetic system contribute to its clarity, transient speed and precise retrieval of musical detail. The generator is housed within an advanced titanium, aluminium and wood sandwich body engineered to control unwanted resonance, while the reduced-eddy-current magnetic circuit and 12µm/mN compliance complete a distinctive Swiss-made moving coil design focused on mechanical integrity and accurate signal generation.
Key Features
Moving coil cartridge
Swiss made
Patented monobloc ceramic transducer technology
Cantilever and coil former formed as a single ceramic unit
Micro Ridge diamond stylus
4N pure silver coils
Neodymium-Armco magnetic system
Reduced eddy-current loss magnetic design
Titanium-aluminium-wood body construction
Gold-plated 4-pin connections
Standard ½-inch mounting
Output voltage: 0.4mV at 5cm/s
Internal impedance: 2 × 20Ω
Recommended load: 500Ω
Compliance: 12µm/mN
Recommended tracking force: 1.8–2.0g
Vertical tracking angle: 20°
Frequency response: 20Hz–30kHz
FIM distortion: maximum 0.2%
Weight: 16g
