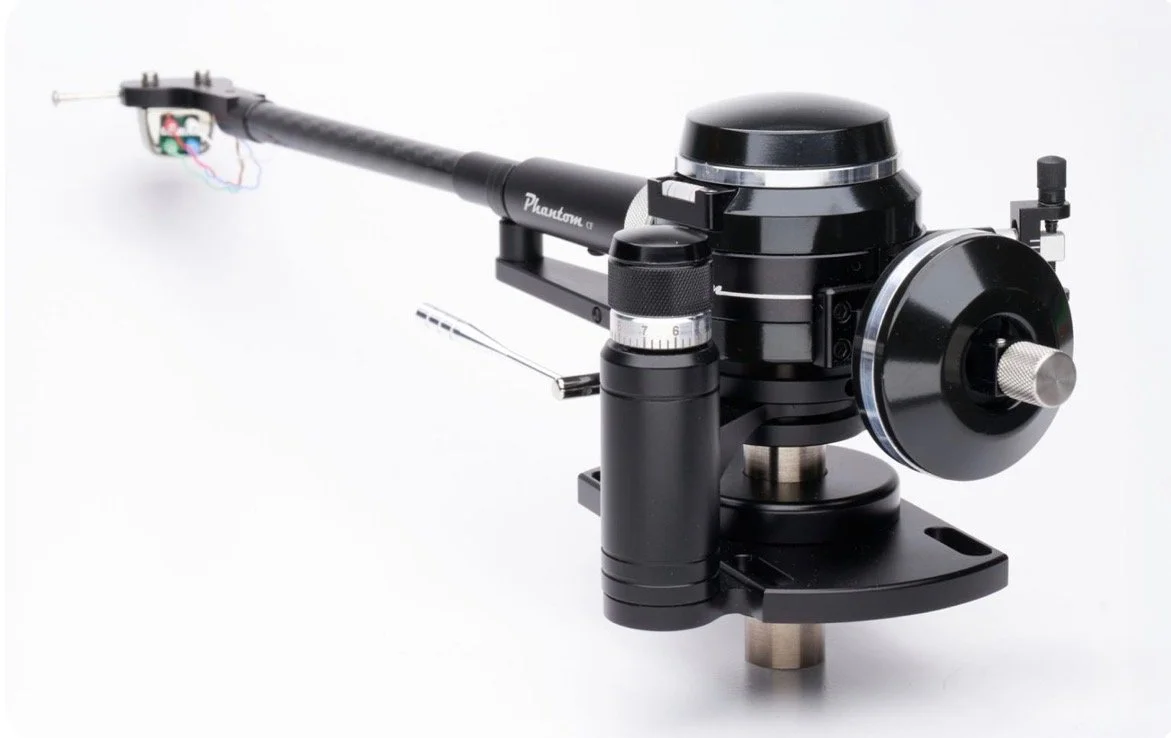

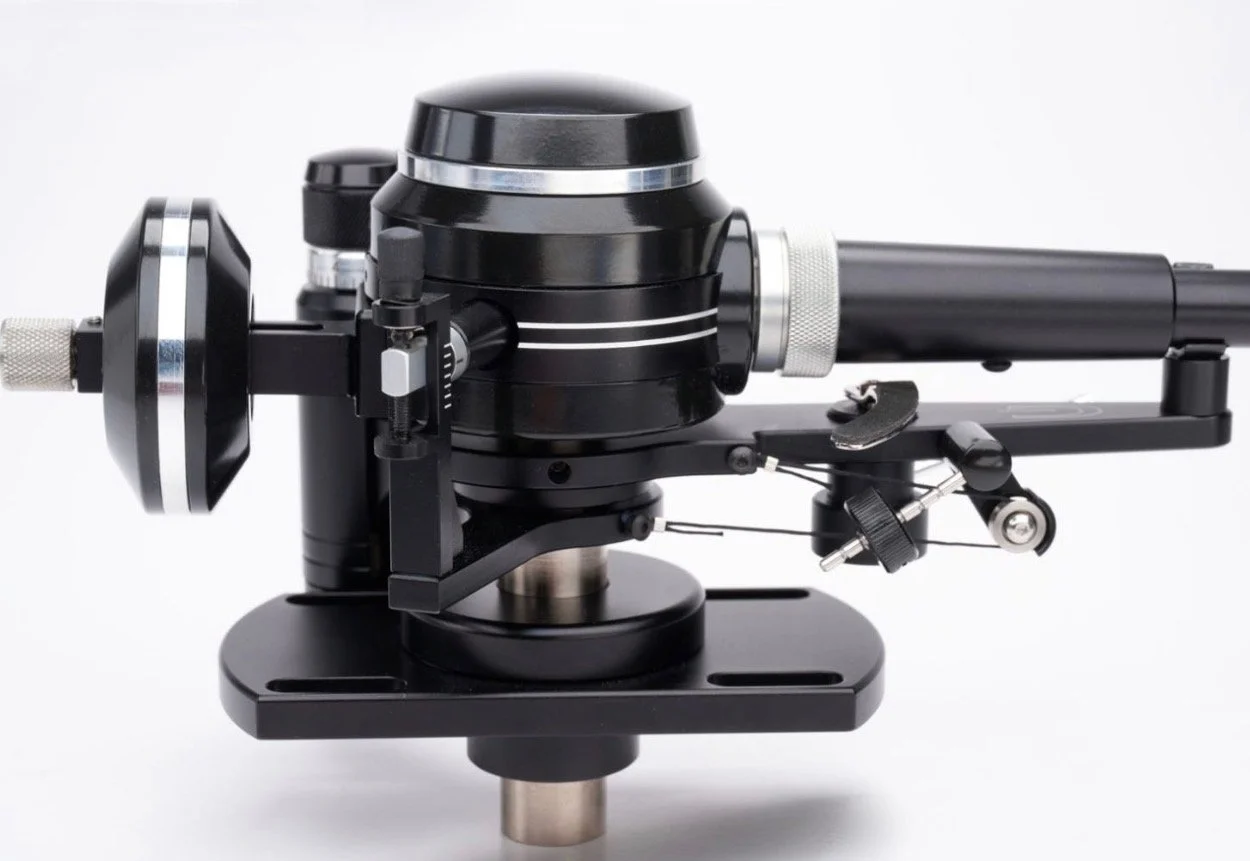

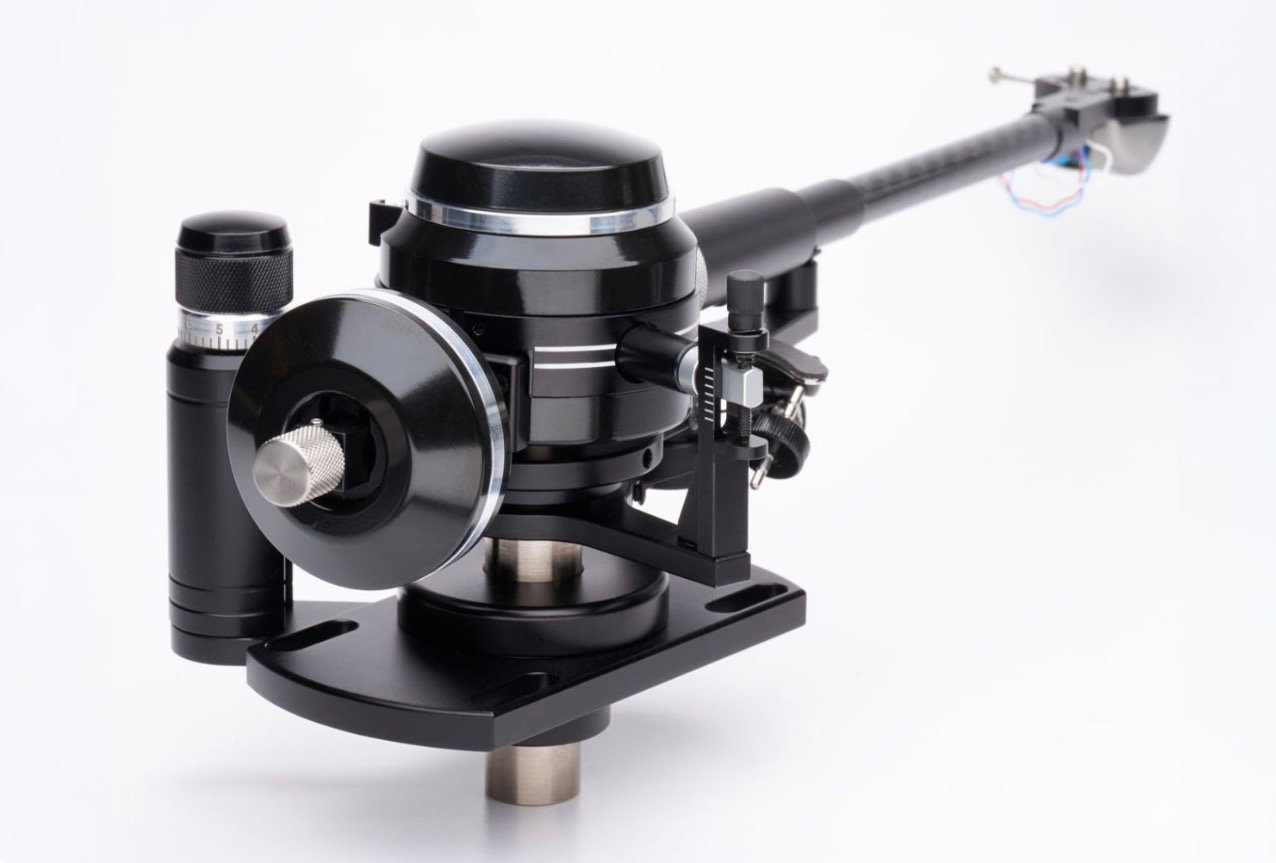

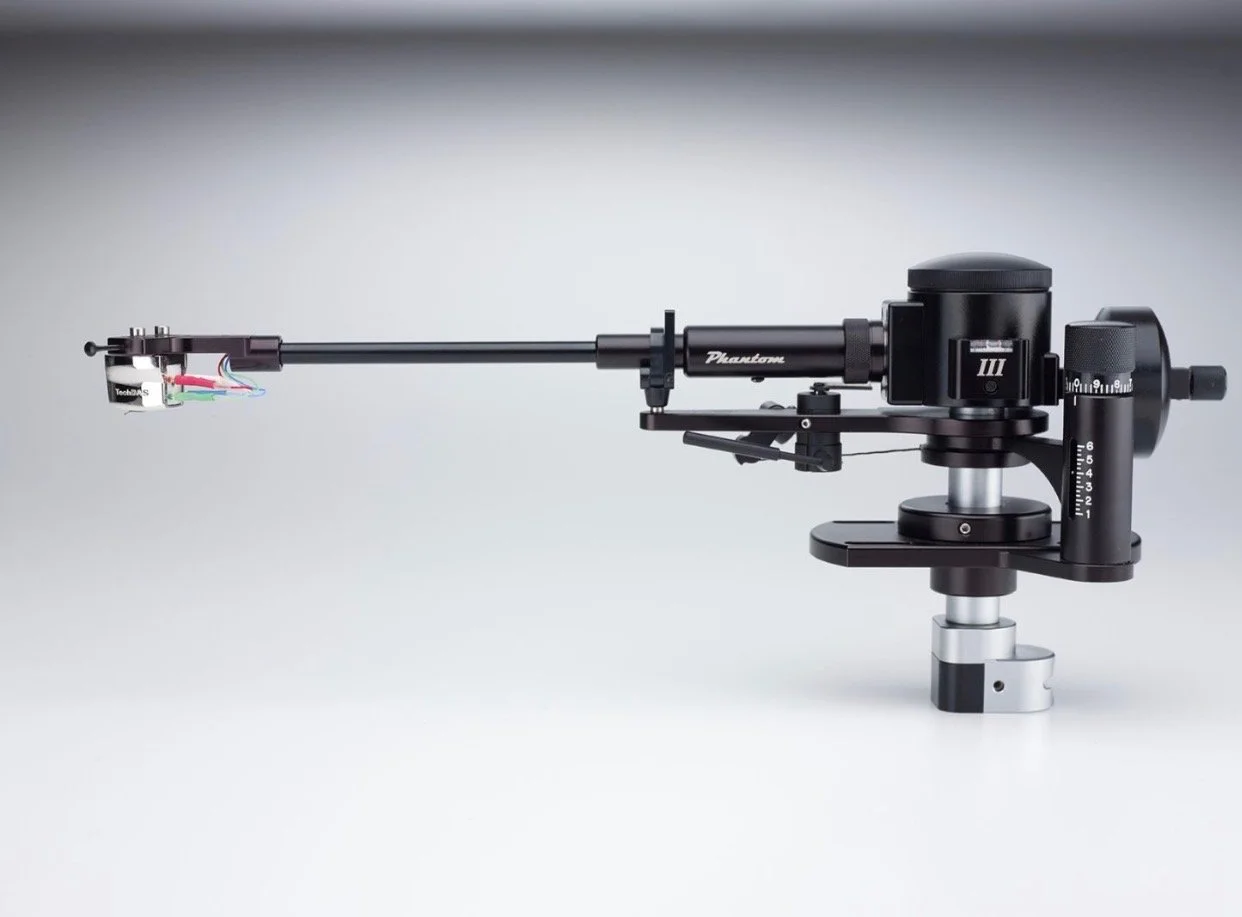

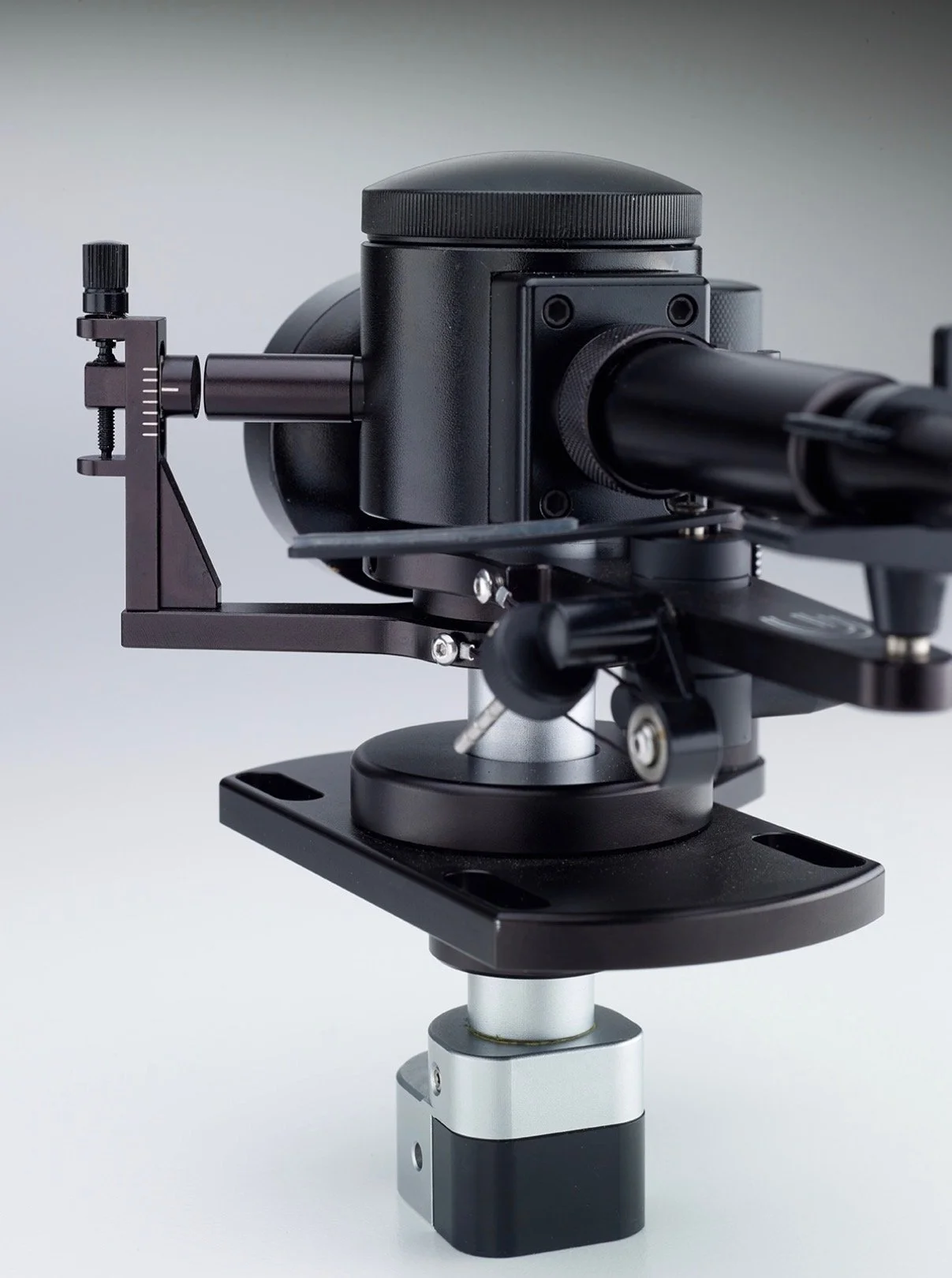

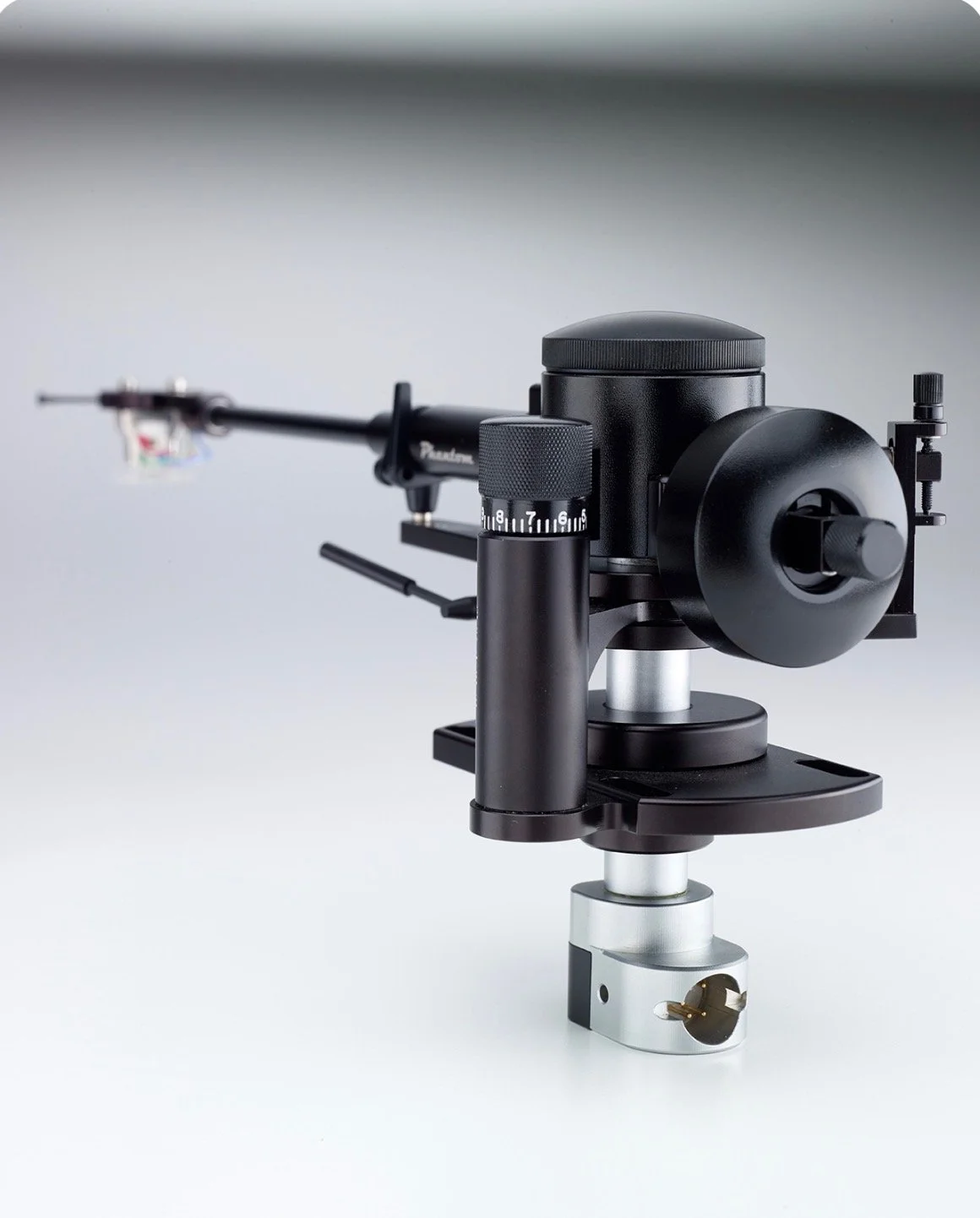

The Graham Engineering Phantom III is a precision unipivot tonearm designed to combine the low-friction advantages of a unipivot bearing with the stability and repeatability normally associated with fixed-bearing designs. Its patented Magneglide magnetic stabilisation system provides lateral stability and damping while allowing the arm to operate in true Neutral Balance, maintaining consistent tracking force as the cartridge follows record warps.
A titanium armwand, upgraded pivot assembly and constrained-layer brass and tungsten bearing housing provide high rigidity, effective energy control and mechanical damping. Fluid damping works alongside the Magneglide system to control unwanted movement, while the removable armwand and comprehensive adjustment of VTA, azimuth, tracking force and anti-skating allow exceptionally precise cartridge setup. The Phantom III is available in 9, 10 and 12-inch versions to suit a wide range of turntables and cartridges.
Key Features
Precision unipivot tonearm
Patented Magneglide magnetic stabilisation system
True Neutral Balance geometry
Pivot fluid damping
Titanium removable armwand
Constrained-layer brass and tungsten pivot housing
Upgraded pivot design
Adjustable VTA
Adjustable azimuth
Adjustable anti-skating
Available in 9, 10 and 12-inch versions
Effective length: 235mm / 246.8mm / 308.8mm
Effective mass: 11.5g / 12g / 14g
Spindle-to-pivot distance: 217.4mm / 230.1mm / 295.6mm
Cartridge weight range: 5–18g
SME arm base mount
5-pin DIN output
Tonearm weight: 1,100g
9 Inch version £11990
10 Inch version £12590
12 Inch version £13190
