The Brinkmann Mono is a reference monoblock power amplifier engineered to deliver exceptional control, transparency and dynamic expression with even the most demanding loudspeakers. Designed and manufactured in Germany, it employs a fully balanced driver stage, an advanced Diamond output topology and an exceptionally high-current power supply, allowing music to flow with remarkable ease while maintaining complete authority over the loudspeaker load.

A 1500W peak-capable power transformer, four high-capacity reservoir capacitors totalling 132mF and four Sanken high-performance output transistors contribute to its clarity, transient speed and effortless dynamic capability. The extremely compact internal layout keeps signal paths to an absolute minimum, while the Diamond output stage maintains a low output impedance across the audio band without global feedback, preserving both precision and musical realism.

Key Features

Reference monoblock power amplifier

Designed and manufactured in Germany

Fully balanced driver stage

Diamond output topology

High-current power supply with 1500W peak-capable transformer

Four reservoir capacitors with 132mF total capacitance

Four Sanken high-performance output transistors

150W into 8Ω

250W into 4Ω

Fully balanced XLR and unbalanced RCA inputs

Damping factor: 80 (8Ω)

Minimum loudspeaker impedance: 3Ω

Compact internal signal path layout

Optional granite isolation base

Weight: 18kg amplifier (each) , 5kg granite base

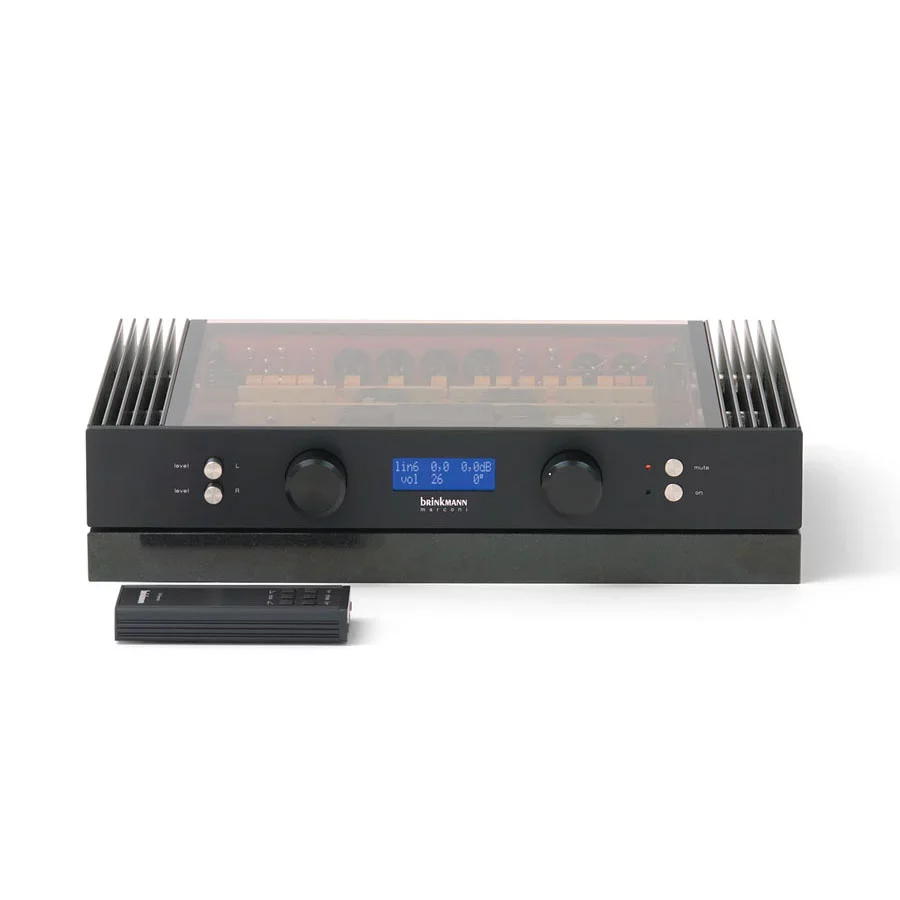

The Brinkmann Marconi Mk II is a reference line preamplifier engineered to preserve musical integrity through an exceptionally transparent signal path and uncompromising circuit design. Designed and manufactured in Germany, it combines Helmut Brinkmann’s latest hybrid circuitry with extensive input configuration and precise volume control, delivering exceptional clarity, dynamic expression and the ability to drive virtually any power amplifier with ease.

Brinkmann’s hybrid circuit combines ultra-low-noise bipolar transistors with carefully selected NOS Telefunken valves, using each technology where it performs best. Individual input gain trim, a motorised analogue volume control and balanced output stage contribute to outstanding signal integrity, while remote-controlled input selection, phase inversion and stored input settings make the Marconi Mk II equally refined in daily use and ultimate system performance.

Key Features

Reference line preamplifier

Designed and manufactured in Germany

Hybrid circuit using bipolar transistors and NOS Telefunken valves

Motorised analogue volume control

Individual gain trim for each input with memory

4 RCA and 2 balanced XLR inputs

Balanced XLR outputs

Remote control for volume, input selection, mute and phase inversion

Maximum balanced output voltage: ±12V

Input impedance: 20kΩ

Output impedance: <0.1Ω (balanced)

Dedicated external linear power supply

Available with matching granite isolation base

Dimensions: 420 × 95 × 310mm

Weight: 12kg (plus 3.2kg power supply)

The Brinkmann Nyquist ONE is a reference streaming DAC engineered to combine state-of-the-art digital performance with long-term upgradeability. Designed and manufactured in Germany, it features Brinkmann’s unique field-replaceable digital module architecture, allowing future digital technologies to be incorporated without replacing the entire unit. A completely redesigned power architecture, optimised circuit layout and precision clock management further reduce noise and jitter while preserving exceptional musical realism.

Separate conversion paths for PCM and DSD, custom digital filters and a hybrid analogue output stage employing NOS Telefunken valves contribute to its clarity, dynamic expression and natural tonal balance. Comprehensive streaming support, balanced and single-ended outputs, a dedicated headphone amplifier and extensive digital connectivity make the Nyquist ONE an exceptionally versatile digital source while maintaining the analogue refinement for which Brinkmann is renowned.

Key Features

Reference streaming DAC

Designed and manufactured in Germany

User-replaceable digital module for future upgrades

Separate DAC architectures for PCM and DSD

Hybrid analogue output stage with NOS Telefunken valves

Redesigned low-noise power architecture

Precision clock management and custom digital filters

USB, AES/EBU, S/PDIF, Toslink and Ethernet inputs

Streaming support for DLNA, TIDAL, Qobuz, Deezer, vTuner, Audirvāna and Roon

Supports PCM up to 384kHz (DXD), DSD64, DSD128 (DoP), DSD256 Native and MQA

Balanced XLR, single-ended RCA and dedicated headphone outputs

Remote control supplied

Dimensions: 420 × 95 × 310mm

Weight: 12kg (plus 3.2kg external power supply)

The Brinkmann Edison Mk II is a reference MM and MC phono stage engineered to extract the maximum performance from the finest analogue systems. Designed and manufactured in Germany, it combines ultra-low-noise bipolar transistor input stages with carefully selected NOS Telefunken valves, allowing each technology to be used where it performs best while preserving exceptional transparency, dynamic expression and signal integrity.

Three independently configurable inputs, switchable 1:1 input transformers and individually stored gain and loading settings provide exceptional flexibility for multiple tonearms and cartridges. Precision RIAA equalisation is implemented using a combination of passive and feedback networks between the valve gain stages, while the fully balanced output stage and dedicated external power supply contribute to exceptionally low noise and outstanding musical realism.

Key Features

MM and MC compatible phono stage

Designed and manufactured in Germany

Hybrid circuit using bipolar transistors and NOS Telefunken valves

Three independently configurable phono inputs

Two balanced XLR inputs plus three RCA inputs

Independently adjustable gain for each input (16 steps, 49–73dB)

Twelve selectable loading options (50Ω–47kΩ)

Switchable 1:1 input transformers

Precision RIAA equalisation

Fully balanced XLR outputs

External linear power supply

Remote control with memory for all input settings

Available with either Mono or Phase switch option

Frequency response: DC–250kHz

THD: 0.01%
