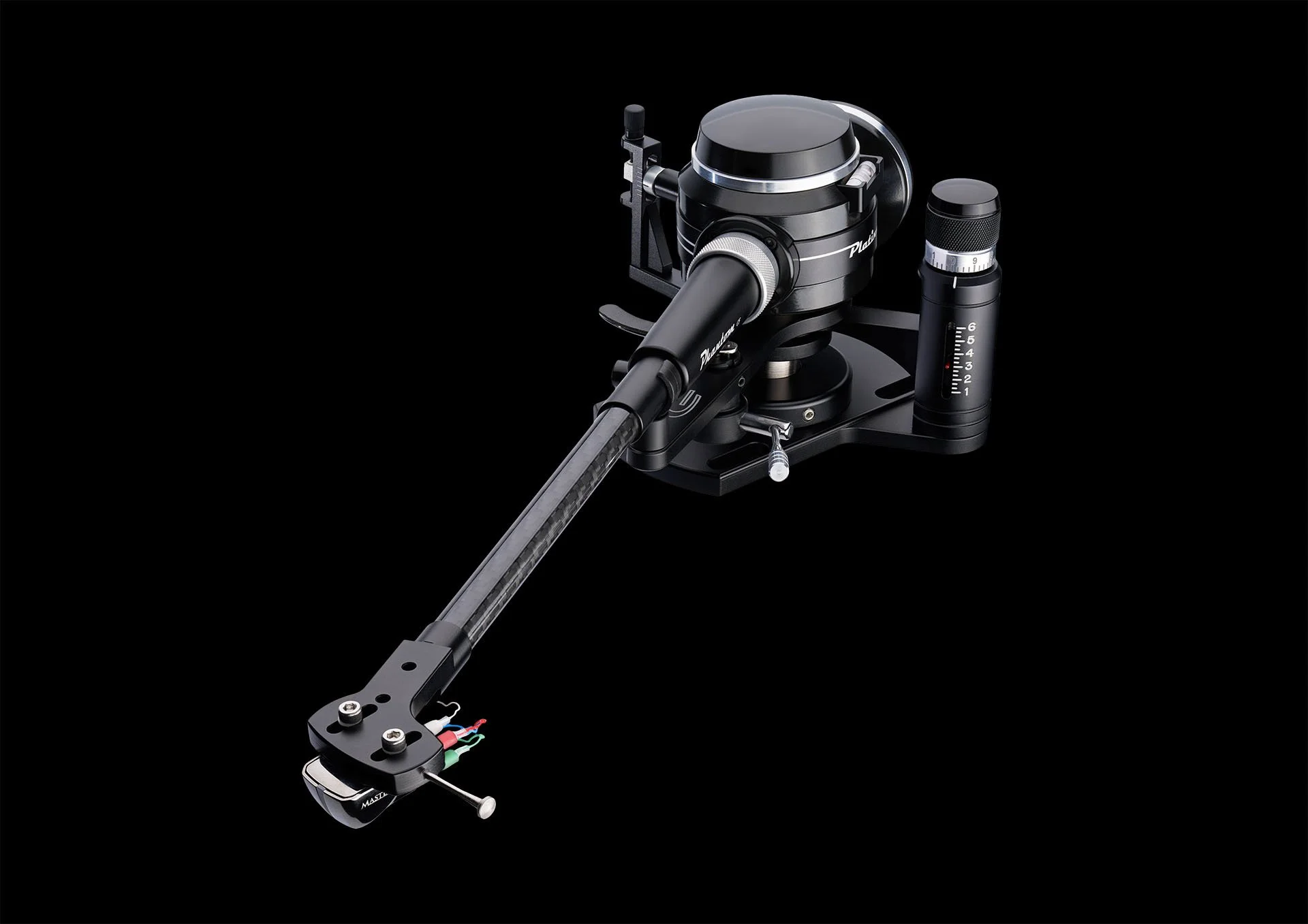

The Graham Engineering Phantom Platinum is the flagship expression of the Phantom unipivot tonearm, engineered to minimise friction, resonance and mechanical interference while preserving exceptional tracking stability. Its patented Magneglide magnetic stabilisation system provides the stability of a fixed-bearing design while retaining the extremely low-friction movement of a single-point bearing, with Neutral Balance geometry maintaining consistent tracking force as the cartridge follows record warps.

A custom carbon-fibre armwand combines exceptionally high rigidity with low mass and effective internal damping, partnered with a lightweight magnesium headshell to further reduce mass at the cartridge end of the arm. At its heart is a precision Swiss-manufactured matched tungsten-carbide bearing with a microscopically polished pivot and matching cup, surrounded by specialised silicone damping fluid. Upgraded 4N silver-plated copper internal wiring, removable armwands and comprehensive cartridge adjustment complete Graham Engineering’s most advanced tonearm design.

Key Features

Flagship unipivot tonearm

Patented Magneglide magnetic stabilisation system

True Neutral Balance geometry

Precision Swiss-manufactured matched tungsten-carbide bearing

Microscopically polished zero-tolerance pivot assembly

Specialised silicone fluid damping

Custom-developed carbon-fibre armwand

Lightweight magnesium headshell

Removable armwand for off-turntable cartridge installation and alignment

4N silver-plated copper armwand wiring

Spiral grounding shield with silicone damping jacket

Ultra-fine #42 gauge Litz wiring within the main housing

Adjustable horizontal azimuth through the Magneglide system

Available in 10 and 12-inch versions

Effective length: 246.8mm / 308.8mm

Effective mass: 12g / 14g

Spindle-to-pivot distance: 230.1mm / 295.6mm

Overhang: 16.7mm / 13.2mm

Cartridge weight range: 5–18g

SME arm base mount

5-pin DIN output

Tonearm weight: 1,300g

10 Inch version £28790

12 Inch version £29960

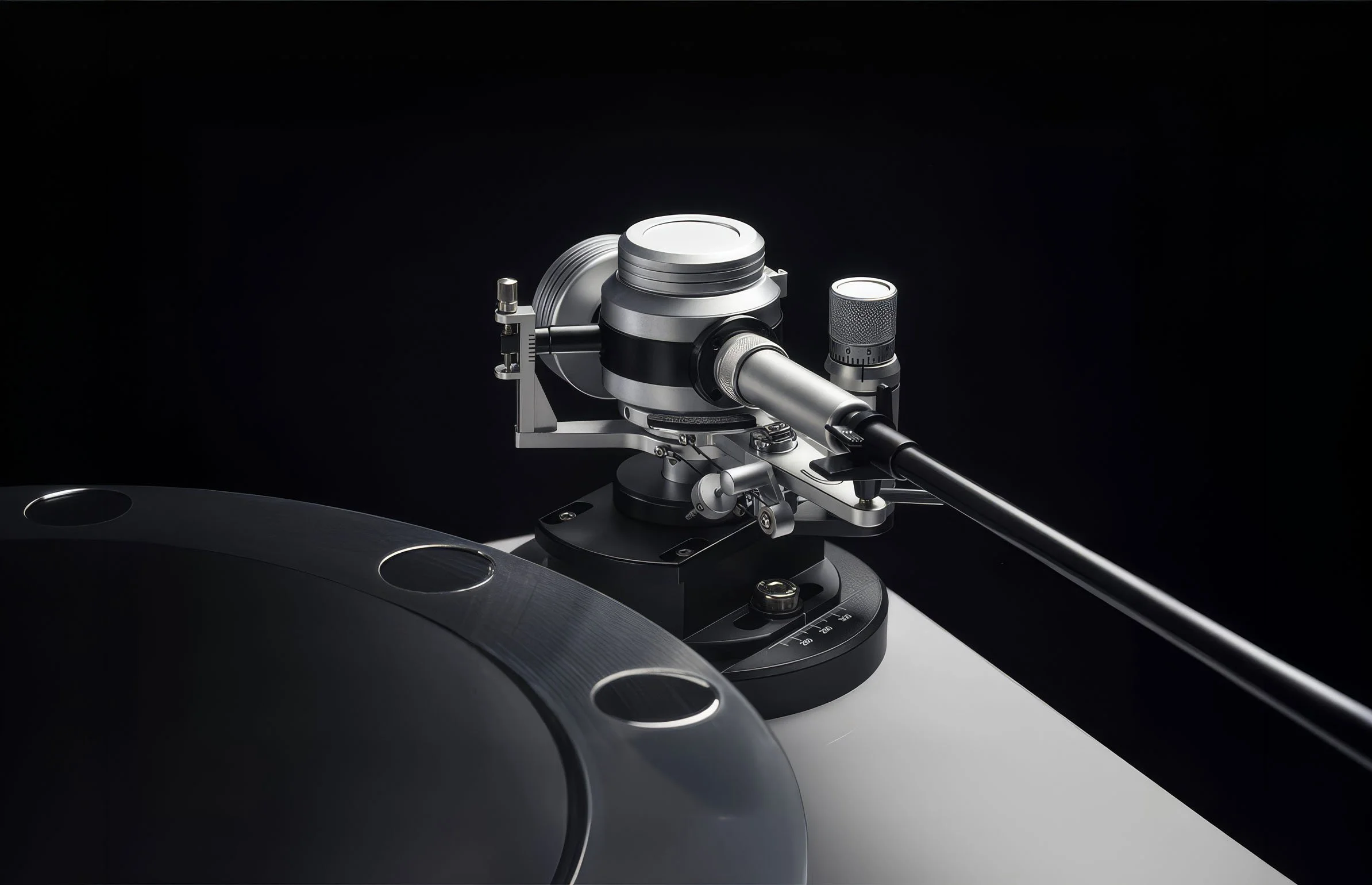

The Graham Engineering Phantom Elite is a reference unipivot tonearm designed to take the patented technologies of the Phantom platform to a substantially higher level of mechanical refinement and performance. Its Magneglide magnetic stabilisation system controls azimuth and maintains movement in a true vertical plane, while Neutral Balance geometry keeps tracking force consistent as the arm follows record warps.

A redesigned pivot assembly uses constrained-layer damping with two high-density metals and a non-magnetic tungsten insert to provide zero-tolerance bearing contact, high energy absorption and exceptionally low-friction movement. A larger, rigid damped titanium armwand, decoupled counterweight and upgraded Litz-based internal wiring further control resonance and preserve signal integrity. Removable 9, 10 and 12-inch armwands allow precise off-turntable cartridge alignment and make the Phantom Elite suitable for a wide range of reference analogue systems.

Key Features

Reference unipivot tonearm

Patented Magneglide magnetic stabilisation system

True Neutral Balance geometry

Redesigned constrained-layer damped pivot assembly

High-density non-magnetic tungsten bearing insert

Zero-tolerance bearing contact

Larger rigid damped titanium removable armwand

Decoupled counterweight with subsonic resonant frequency

Upgraded Litz-based internal tonearm wiring

Removable armwand for off-turntable cartridge installation and alignment

Height-adjustable cartridge alignment gauge

Available in 9, 10 and 12-inch versions

Effective length: 235mm / 246.8mm / 308.8mm

Effective mass: 11.5g / 12g / 14g

Spindle-to-pivot distance: 217.4mm / 230.1mm / 295.6mm

Overhang: 17.6mm / 16.7mm / 13.2mm

Cartridge weight range: 5–18g

SME arm base mount

5-pin DIN output

Tonearm weight: 1,300g

9 Inch version £16530

10 Inch version £16990

12 Inch version £17450

The Graham Engineering Phantom III is a precision unipivot tonearm designed to combine the low-friction advantages of a unipivot bearing with the stability and repeatability normally associated with fixed-bearing designs. Its patented Magneglide magnetic stabilisation system provides lateral stability and damping while allowing the arm to operate in true Neutral Balance, maintaining consistent tracking force as the cartridge follows record warps.

A titanium armwand, upgraded pivot assembly and constrained-layer brass and tungsten bearing housing provide high rigidity, effective energy control and mechanical damping. Fluid damping works alongside the Magneglide system to control unwanted movement, while the removable armwand and comprehensive adjustment of VTA, azimuth, tracking force and anti-skating allow exceptionally precise cartridge setup. The Phantom III is available in 9, 10 and 12-inch versions to suit a wide range of turntables and cartridges.

Key Features

Precision unipivot tonearm

Patented Magneglide magnetic stabilisation system

True Neutral Balance geometry

Pivot fluid damping

Titanium removable armwand

Constrained-layer brass and tungsten pivot housing

Upgraded pivot design

Adjustable VTA

Adjustable azimuth

Adjustable anti-skating

Available in 9, 10 and 12-inch versions

Effective length: 235mm / 246.8mm / 308.8mm

Effective mass: 11.5g / 12g / 14g

Spindle-to-pivot distance: 217.4mm / 230.1mm / 295.6mm

Cartridge weight range: 5–18g

SME arm base mount

5-pin DIN output

Tonearm weight: 1,100g

9 Inch version £11990

10 Inch version £12590

12 Inch version £13190
